Rectifier practice problems
Refresh the page to get a new problem.
Read the Rectifer (EE 201) class notes.

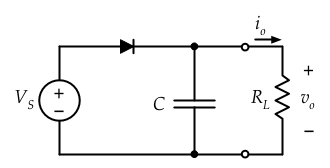

For the rectifier circuit shown,
- R = 3.3 kΩ
The source is a sinusoid with amplitude 22.5 V and frequency, f = 60 Hz.
Calculate the minimum value of C needed in order to guarantee that the ripple voltage will be less than 5.62 V.
